Technical Data
| Max. working pressure: | ¼” – 1”: 2.5 MPa (25 bar) 1¼” – 2”: 2.0 MPa (20 bar) |
| Working temperature: | Min. -20 °C/Max. 120 °C |
| Thread standard: | G – male thread, G – female thread |
| Material, sealing: | PTFE |

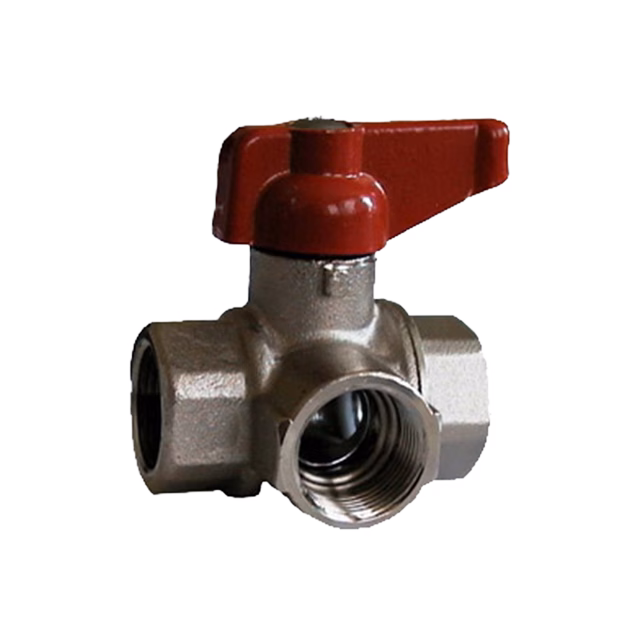

| Other data: | Material, ballvalve Brass EN 12165 CW617N, externally sandblasted and nickelplated. |
| Other data: | Material, ball Chrome plated |
