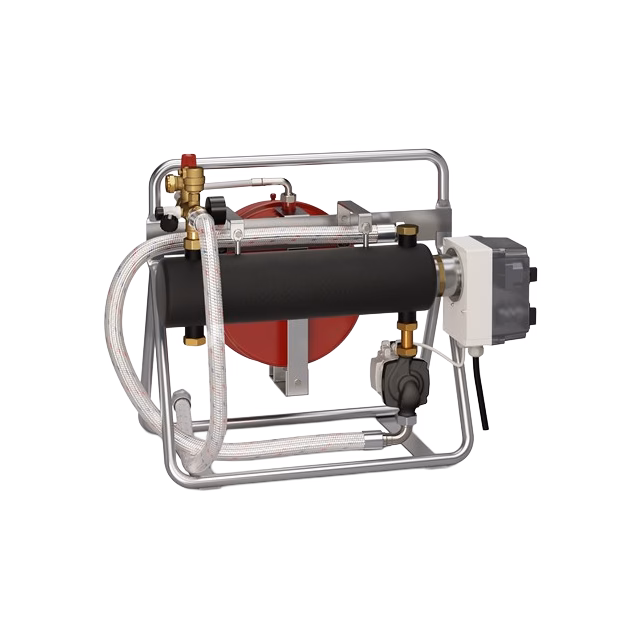

The LK 440 EasyHeat is a complete portable electrically heated boiler. It is primarily meant to be used as a temporary heater, e.g. for drying concrete slabs installed with under floor heating and for heating buildings under construction.
LK 440 EasyHeat is available in two versions, with 3-phase 400V or 1-phase 230V. The total output capacity on 3-phase 400V is 9 kW and works in two steps of 4.5 kW. The total output capacity on 1-phase 230V can be manually set between 2 or 3 kW.
The boiler is supplied complete with a circulation pump, an expansion tank, and auxiliary devices including a safety valve and air vent valve. Connection to the under floor heating manifold or heating system is simple, using steel-reinforced flexible hoses. Temperature regulation is controlled by the boiler’s operating thermostat.
| Protection class: | IP 44 |
| Media 1: | Max. glycol solution 30% |
| Circulating pumps: | Grundfos UPM3 AUTO L, EEI ≤ 0.23 (see pump datasheet/label for exact value) |
| Thermostat: | Operating thermostat Max 60 ºC Safety thermostat 80 ºC |
| Expansion vessel: | 12 l |
| Safety valve: | 3 bar |
| Other data: | Boiler volume 2.8 l |
| Type approval certificate: | CE |
| Article | Dim. | Connection | Voltage | B mm | H mm | L mm | Note | Weight (kg) | Item List |
|---|---|---|---|---|---|---|---|---|---|
| 298470 | F 1″ | 3-phase 400 V Boiler must be protected using 3 x 16 A fuses (max. current 13.5 A) |
9 kW in two stages at 4.5 kW | 430 | 650 | 710 | Safety thermostat 80 °C | 24.0 | |
| 298588 | F 1″ | 1-phase 230V Boiler must be protected using 8,5 A 2 kW, 13 A 3 kW |
2 alt. 3 kW | 430 | 650 | 710 | Safety thermostat 80 °C | 23.0 |
