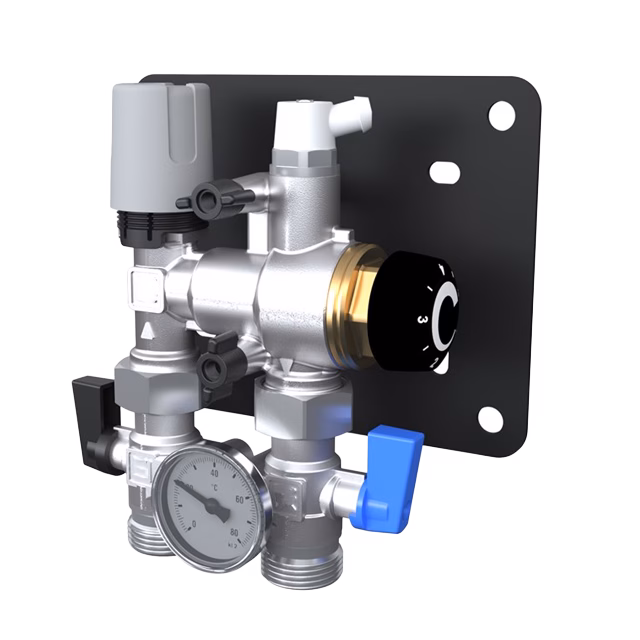

423 MiniLoop RTC is designed to control smaller under floor heating systems that are embedded in concrete or levelling compound with a pipe dimension of 8 mm, 12 mm, 16 mm or 20 mm.
423 MiniLoop RTC has integrated return temperature limiter that make it possible to limit the floor surface temperature.
The room temperature is regulated via a capillary tube thermostat. It is also possible to install a wireless or wired electronic room temperature control.
A. Radiator
B. Radiator system, supply
C. Radiator system, return
D. Floor heating circuit
E. LK 423 MiniLoop RTC
F. Return pipe, floor heating circuit (from RTC)
G. Connection point, supply floor heating circuit
H. Connection point, return floor heating circuit (from RTC)
Recommended max. underfloor heating surface installation 10 m²
| Max. working pressure: | 0.6 MPa (6 bar) |
| Working temperature: | Max. 55 °C |
| Media 1: | Water – Glycol mixture max. 50% |
| Adjustment range: | Return valve: 23 – 44 °C Thermostat: 6 – 28 °C |
| Diameter: | Capillary tube bulb: Ø 16 mm |
| Article no. | Article | Position |
|---|---|---|
| 095391 | Thermostat with sensor | 1 |
| 2988856 | LK Installation cabinet RTB | 2 |
| 1882348 | LK Frame/hatch | 3 |
